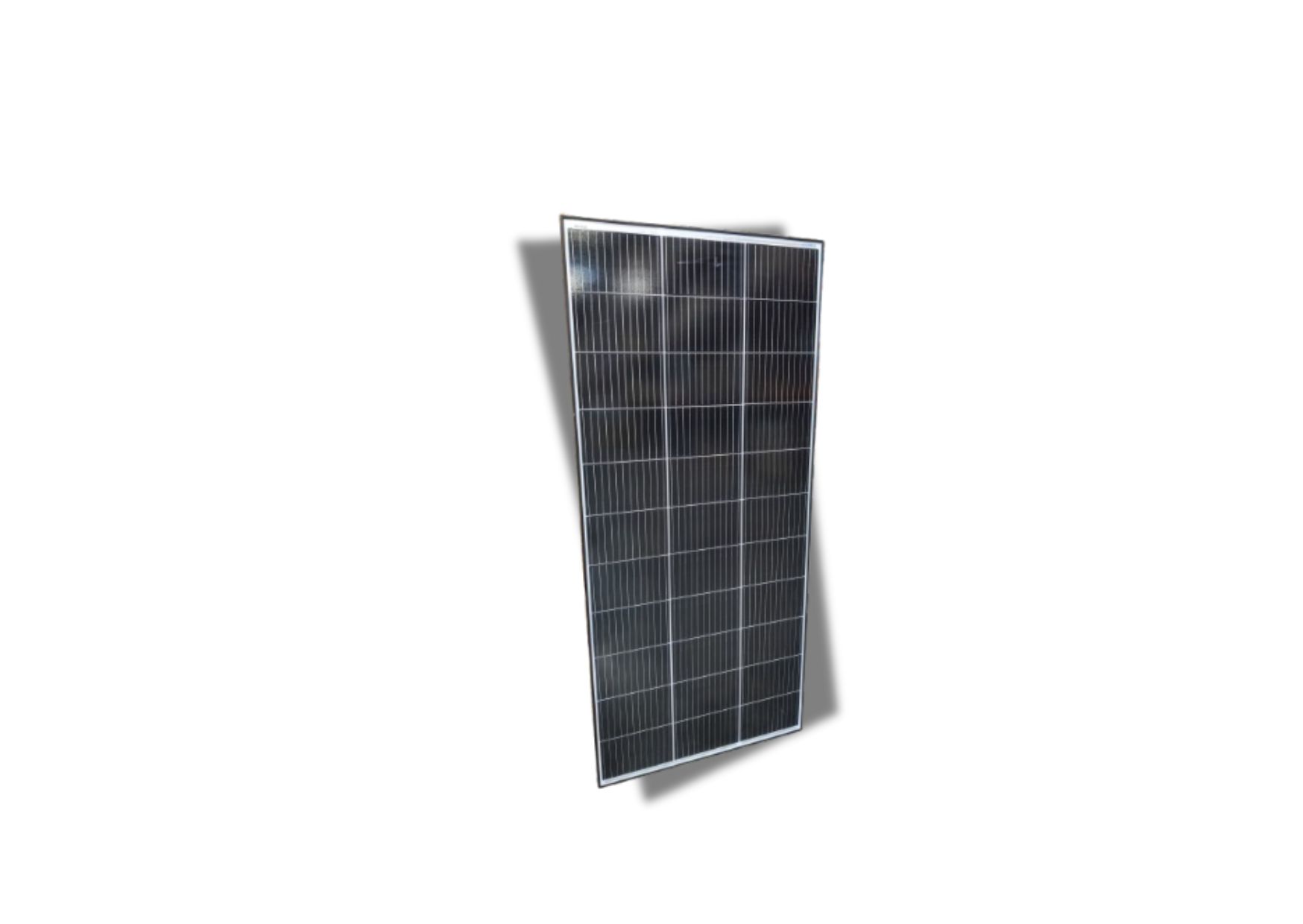

SAMS210M Mono Solar Panel (Black Frame)

Model Type:  SAMS210M

Rated Maximum Power(Pmax): 210W

Power Tolerance Range:±5%

Open Circuit Voltage(Voc):23.60V

Max Power Voltage (Vmp): 19.65V

Short Circuit Current(lsc):11.29A

Max.Power Current(lmp):10.69A

Max.System Voltage: 1000V

Max.Series Fuse Rating: 15A

Weight: 10.6KG

Module Application: Class A

Dimension: 1487*666*30mm

All technical date at standard test condition: Am1.5, E=1000W/m2,Tc=25°C
