AHD-1001BA, SONY CCD2 Rear View Sphere Eye Ball Camera Kit, 1 Year Warranty.
Upgrade or replace your existing reversing camera with the genuine AHD Sphere Eye Ball Camera, engineered specifically for Sphere Reversing Camera Systems.
This compact yet powerful camera delivers crystal-clear images using a Sony CCD image sensor, ensuring excellent visibility day or night. With a wide 120° viewing angle, built-in infrared LEDs, and an IP68 waterproof rating, it’s designed to perform flawlessly in all conditions
The round eyeball style camera produces wide angle, high quality imagery for you to view on the 7 inch high resolution display monitor. This kit has all that is required for easy installation and mounting. It is exactly what you need for keeping a close eye on your 4x4, Caravan, RV, Camper Trailer or Motorhome.
Color Option:
Features:
- Waterproof IP67 rating
- 12V powered camera & LCD display monitor
- 6m coiled cable for connection between the tow vehicle and the towed vehicle.
- Easy to install - Screen can be mounted onto front windscreen or dashboard via the supplied suction mount
- Camera features extremely low current draw yet delivers excellent resolution
- Uses standard 50Hz frequency with 120degree lens angle
- Cables also allow for RV installation such as Campers and Motorhomes

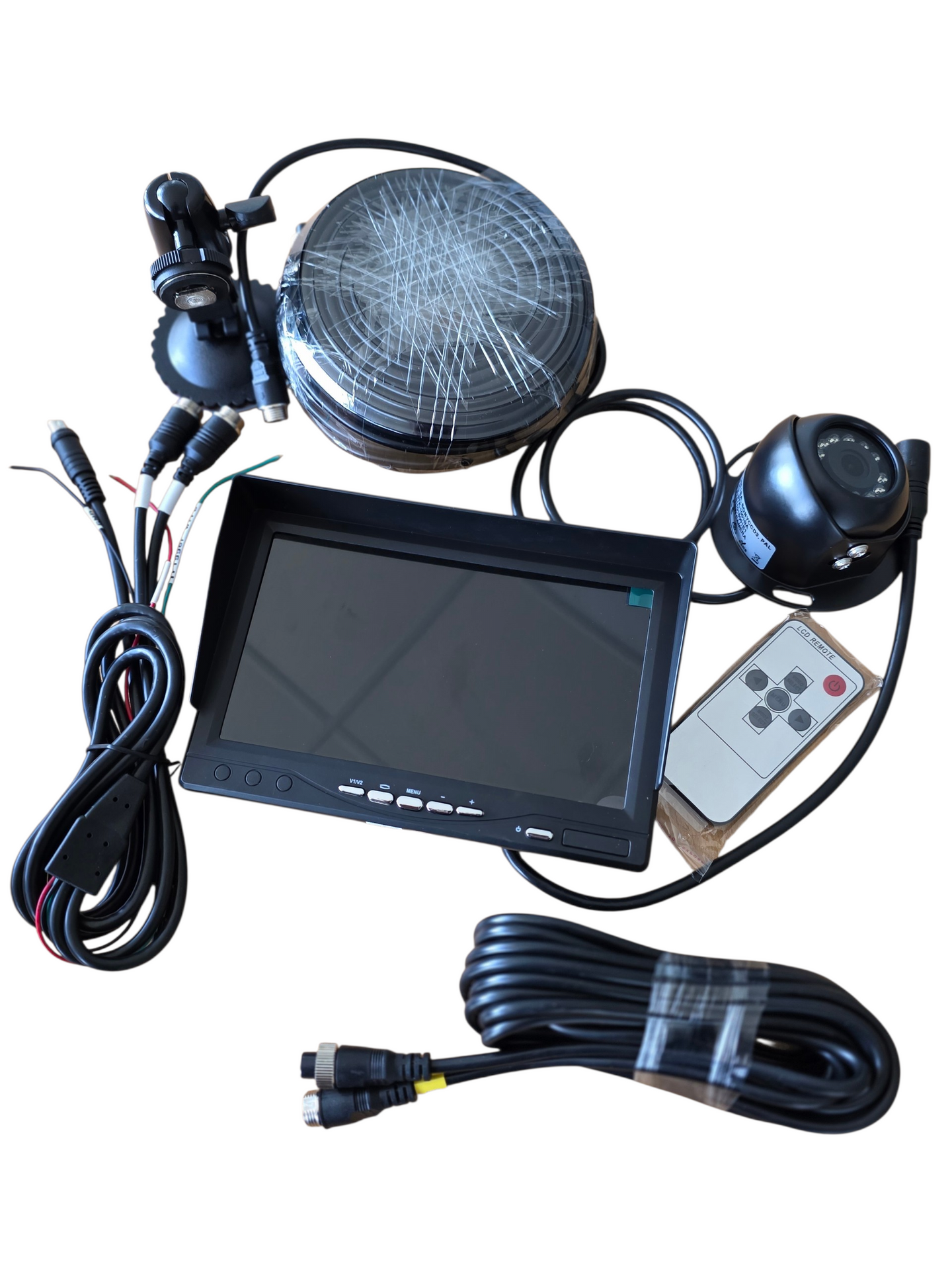

Includes:
- 7” Stand alone LCD Monitor
- Window mount and fixed mount monitor brackets
- Remote control
- 20m tow vehicle cable
Specifications:

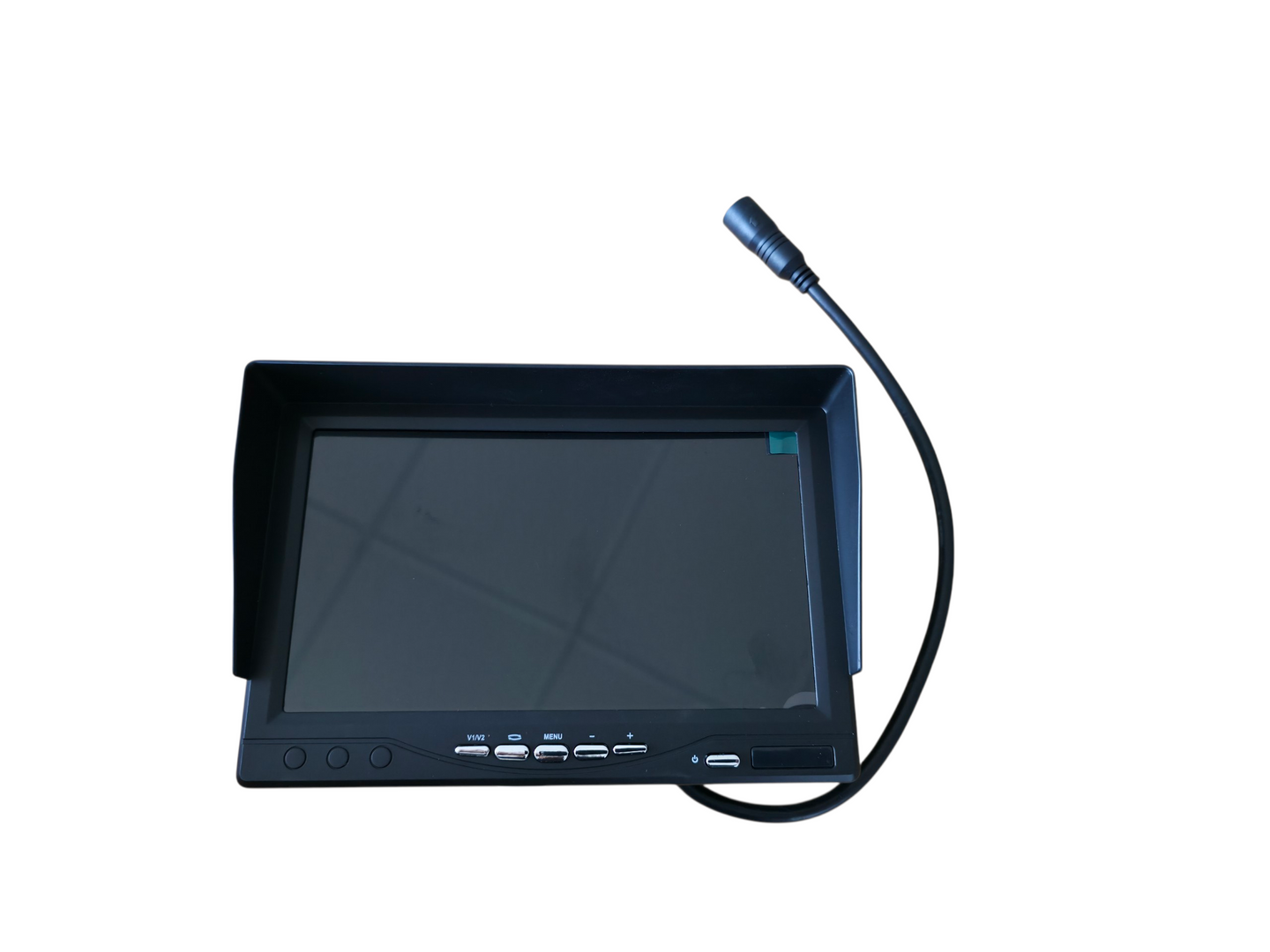

Stand Alone LCD Monitor:
- Screen dimensions: 7 inch
- Aspect Ratio: 16:9
- Luminance: 300cd/m2
- Resolution: AHD1080P
- System: PAL & NTSC auto switch
- Voltage:12V(24V Optional)
- Video: Two way video input
- Rear View: Image can be changed Left & Right
- Operate Mode: Key button & Remote control
- Size: 180 x 120 x 50 (mm)

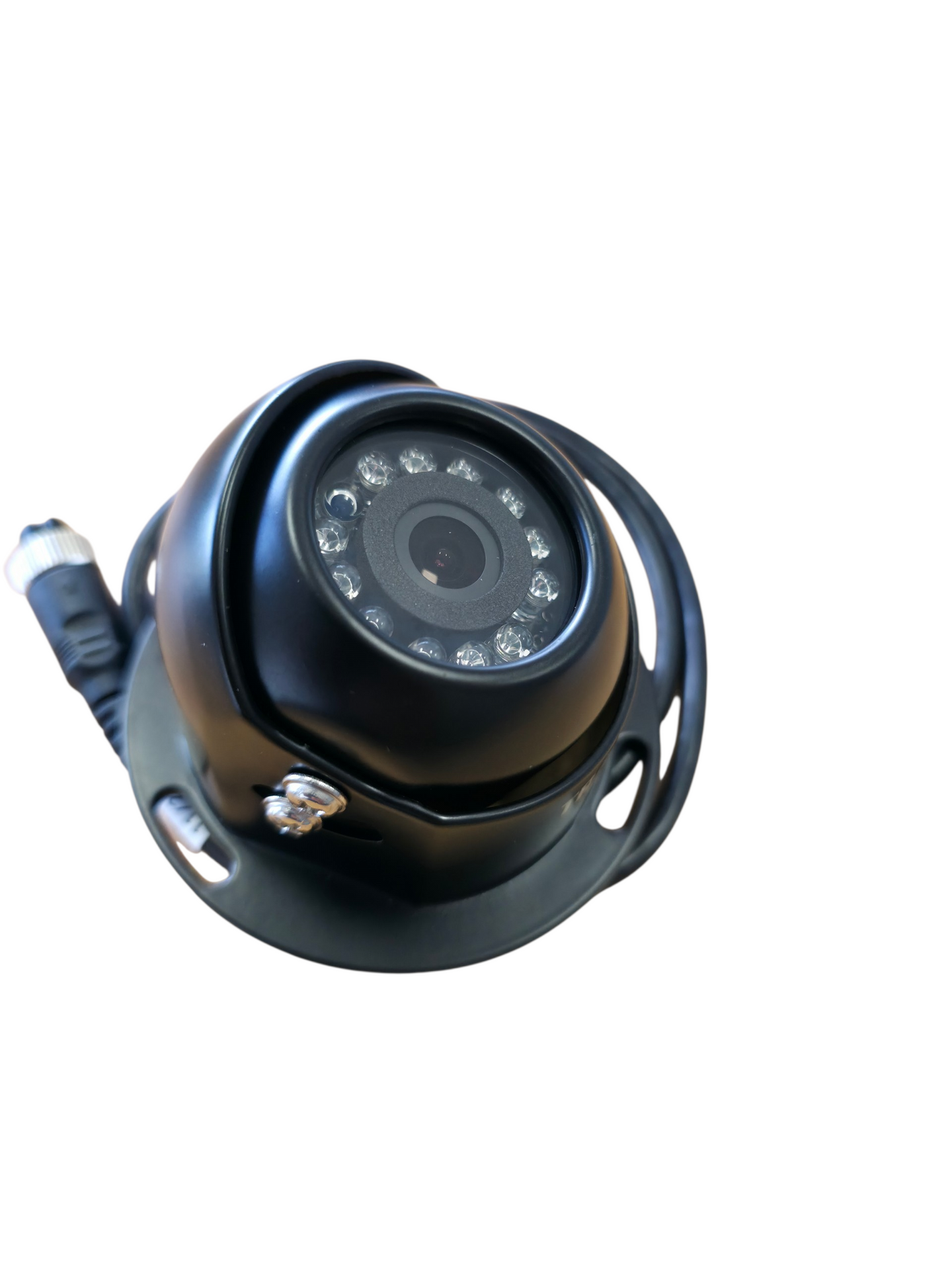

Camera Specifications
-
Sensor: SONY CCD
-
Waterproof Rating: IP68
-
View Angle: 120-degree lens
-
Power Supply: 12VDC
-
Operating Temp: -20℃ to +75℃
